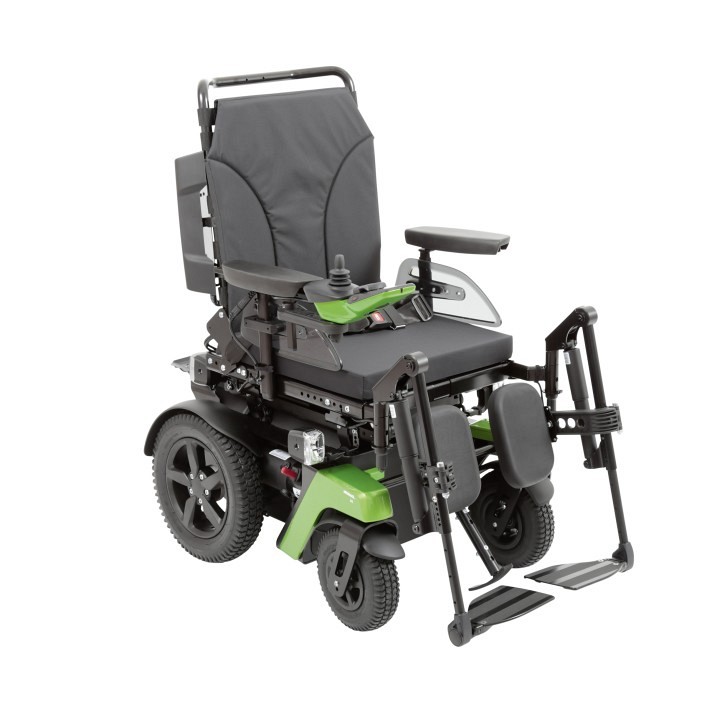

JUVO B6

The Juvo B6 with rear-wheel drive offers enhanced safety and comfortable damping characteristics for outdoor use.

It is also compact and manoeuvrable indoors. Permanent drive wheel suspension compensates for uneven surfaces and the wheelchair’s small outside dimension makes it easier to drive through narrow doorways and navigate in confined spaces.

Like all models in the Juvo product line, the B4 features a modular design and offers a high level of flexibility. The available options and features for the mobility base, seating unit and control device result in a modern and customised fitting. High-quality components such as the variably adjustable seat (VAS) or the TEN° control device can also be selected.

Preberite več Skrij

Natisni

Povpraševanje

Tehnične značilnosti
Prednosti

Tehnične značilnosti

hitrost	6,0 / 7,2 / 9,0 km/h
kapaciteta batarij	AGM 53 Ah (C5), 62 Ah (C20) Gel 63 Ah (C5), 74 Ah (C20)
doseg	35 km z AGM baterijo 53 Ah (C5), 62 Ah (C20) 45 km z gel baterijo 63 Ah (C5), 74 Ah (C20)
nosilnost	160 kg
dovoljen naklon	7° (12%)

višina sedeža (mm)	410 - 570
širina sedeža (mm)	340 - 560
globina sedeža (mm)	340 - 580
nagib sedeža	20°/45°
kot hrbtne podpore	-9 ° do + 30 ° mehansko 0 ° do + 30 ° moči
